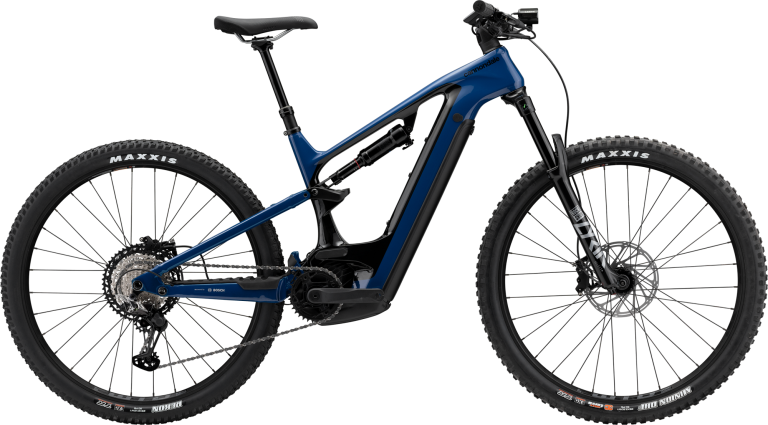

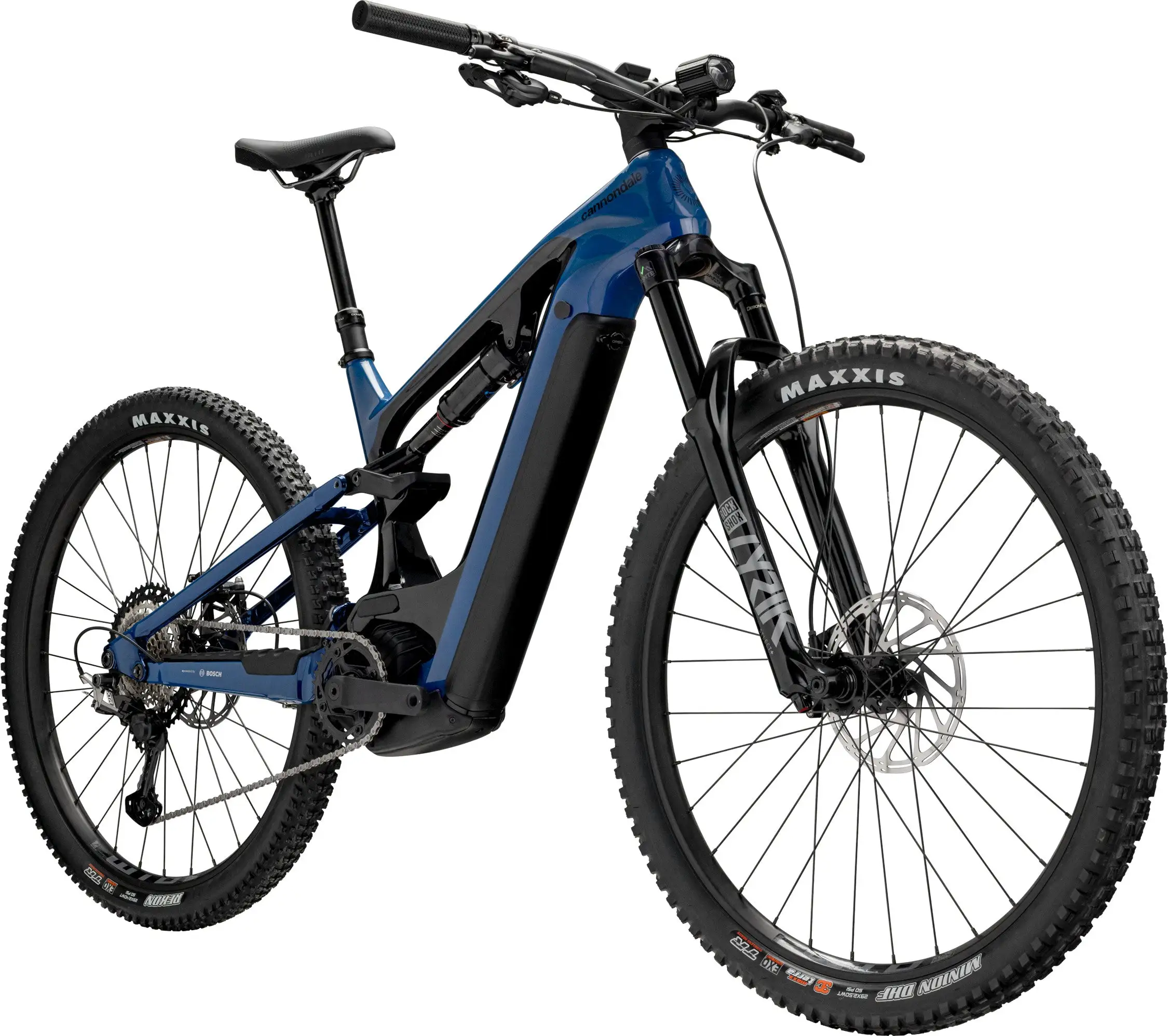

Cannondale Moterra Neo Carbon 1

A dual-suspension e-mountain bike built to crush boundaries. With its intuitive handling & the power and range of the Bosch 750Wh system, nothing is out of reach.

Where it thrives: Challenging trails, Up and down hills, Out in the elements

What it’s built for: Handling, Traction, Efficiency, Durability

FEATURES:

• Proportional Response Tuned carbon frame / RockShox Lyrik Select fork, 150mm travel
• Bosch SmartSystem – 750wh battery & Performance CX motor
• Shimano XTR/XT 12-speed drivetrain

SPECS:

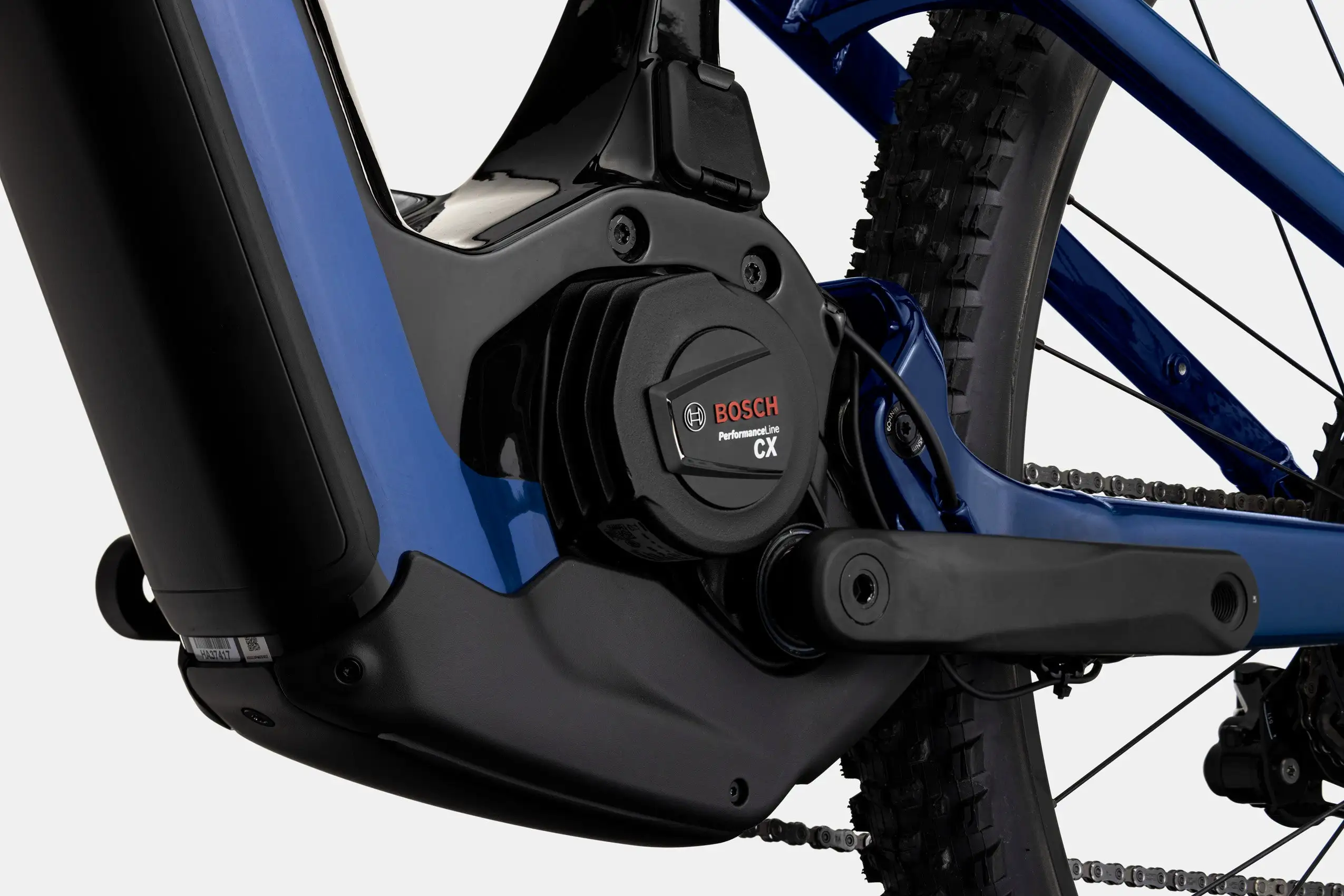

Motor	Bosch Performance Line CX 250W
Battery	Bosch PowerTube 750Wh
Display	Bosch Kiox 300 w/ LED remote
Controller	N/A
Max Assisted Speed	20 MPH
Charger	Bosch 4A
Frame	Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 150mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount
Fork	RockShox Lyrik Select+, 150mm, DebonAir, 15x110mm thru-axle, tapered steered, 44mm offset

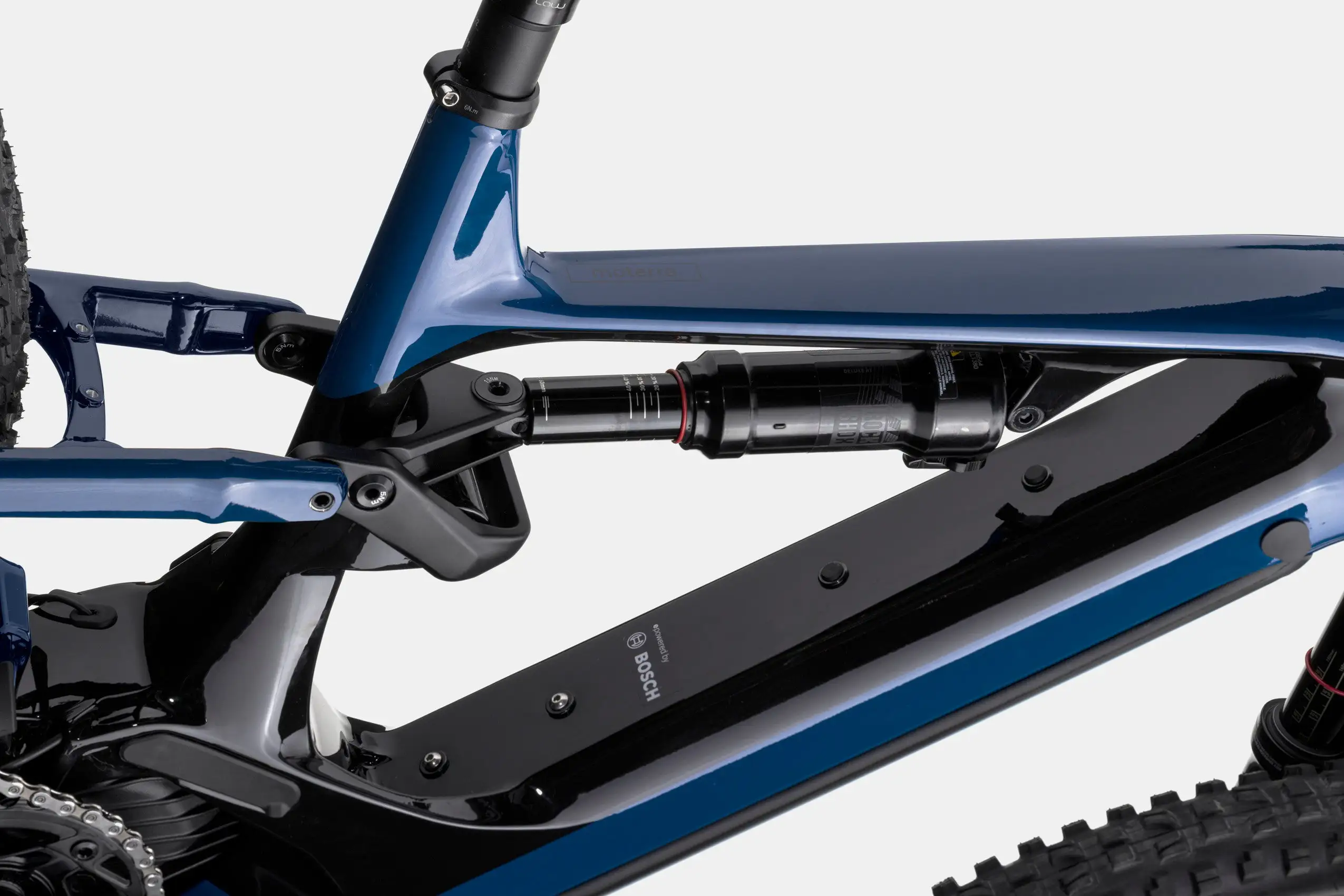

Rear Shock	RockShox Deluxe Select+, DebonAir, 2-Pos mode adjust, adjustable rebound
Rims/Wheels	WTB KOM Trail i30 TCS, 32h, tubeless ready
Hubs	(F) Formula 15x110mm thru-axle / (R) DT Swiss, 12x148mm thru-axle
Spokes	DT Swiss Champion
Tires	(F) Maxxis Minion DHF, 29 x 2.6″, EXO, tubeless ready / (R) Maxxis Rekon, 29 x 2.6″ (27.5×2.6″ – size Small), EXO, tubeless ready
Crankset	FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
Chain	Shimano XT, 12-speed
Front Derailleur	N/A

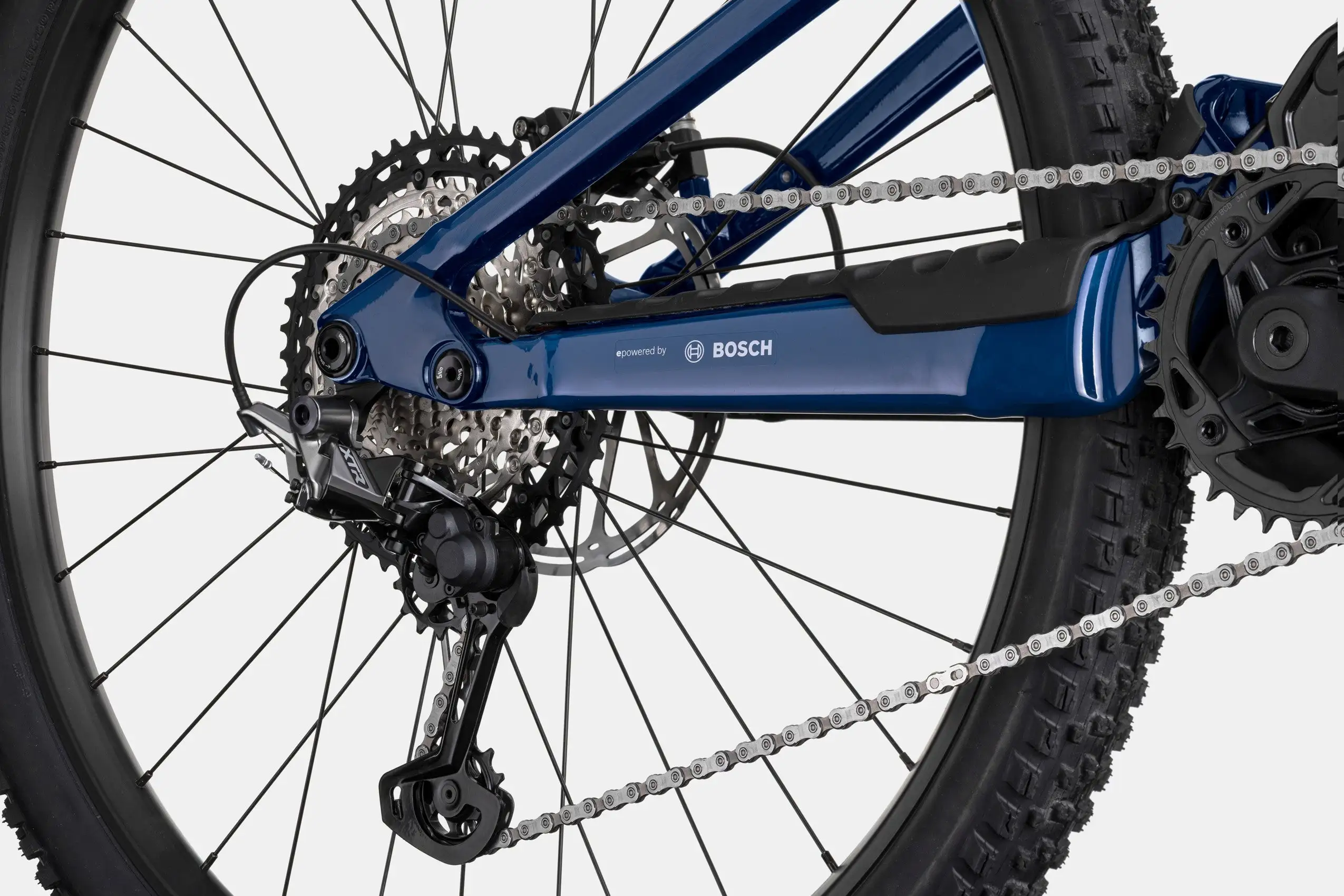

Rear Derailleur	Shimano XTR
Cassette/Rear Cogs	Shimano XT, 10-51, 12-speed
Shifters	Shimano XT, 12-speed

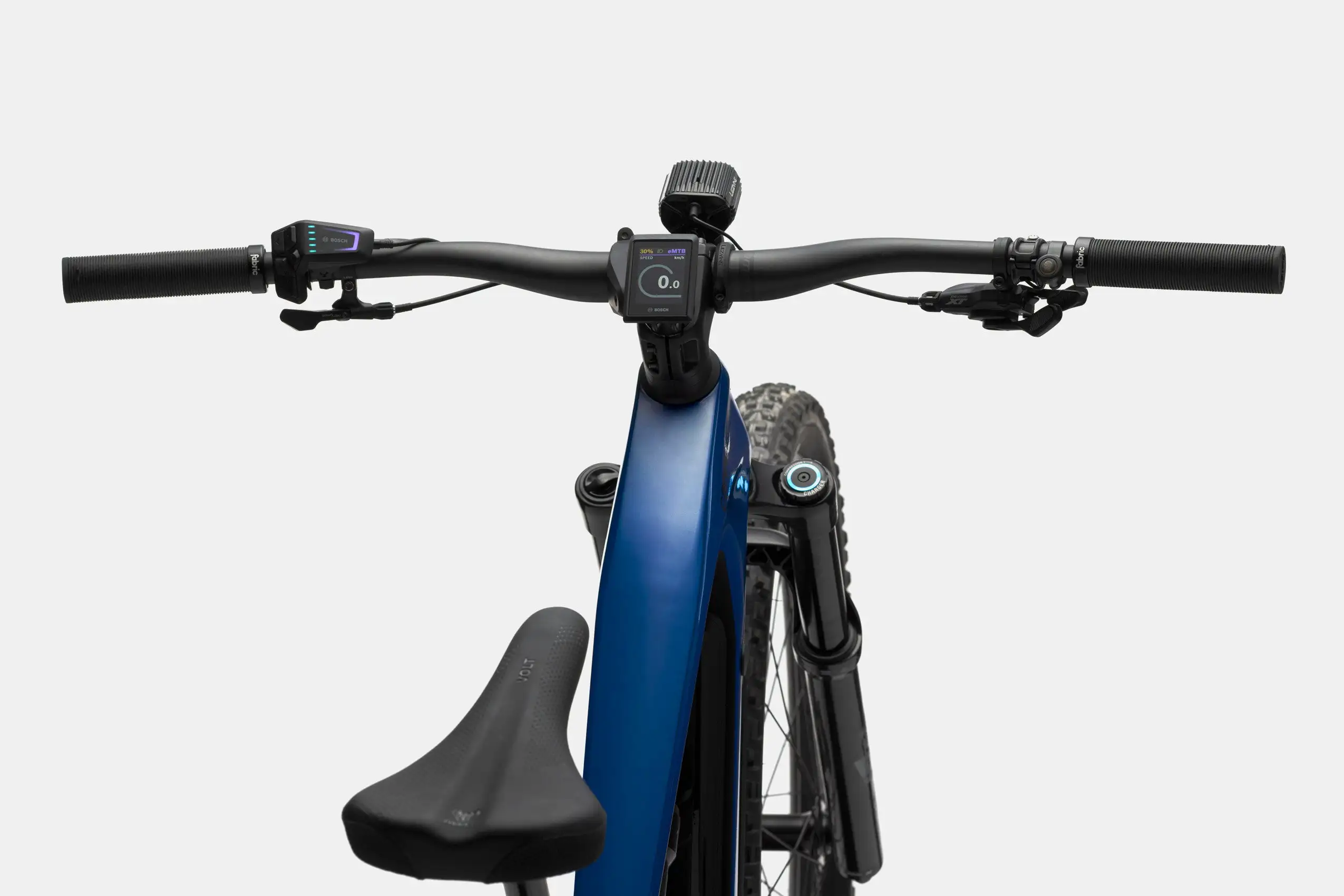

Handlebars	HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
Stem	Cannondale 2, 6061 Alloy, 35mm, 0°
Brake Levers	Shimano XT hydraulic disc
Brakes	Shimano XT 8120 4-piston hydraulic disc, 203/203mm RT76 rotors
Pedals	N/A
Saddle	Fabric Scoop Shallow Elite, cro-mo rails
Seat Post	Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm L, XL)
Accessories & Extras	Lezyne Super HB E1000 w/ remote high beam switch
