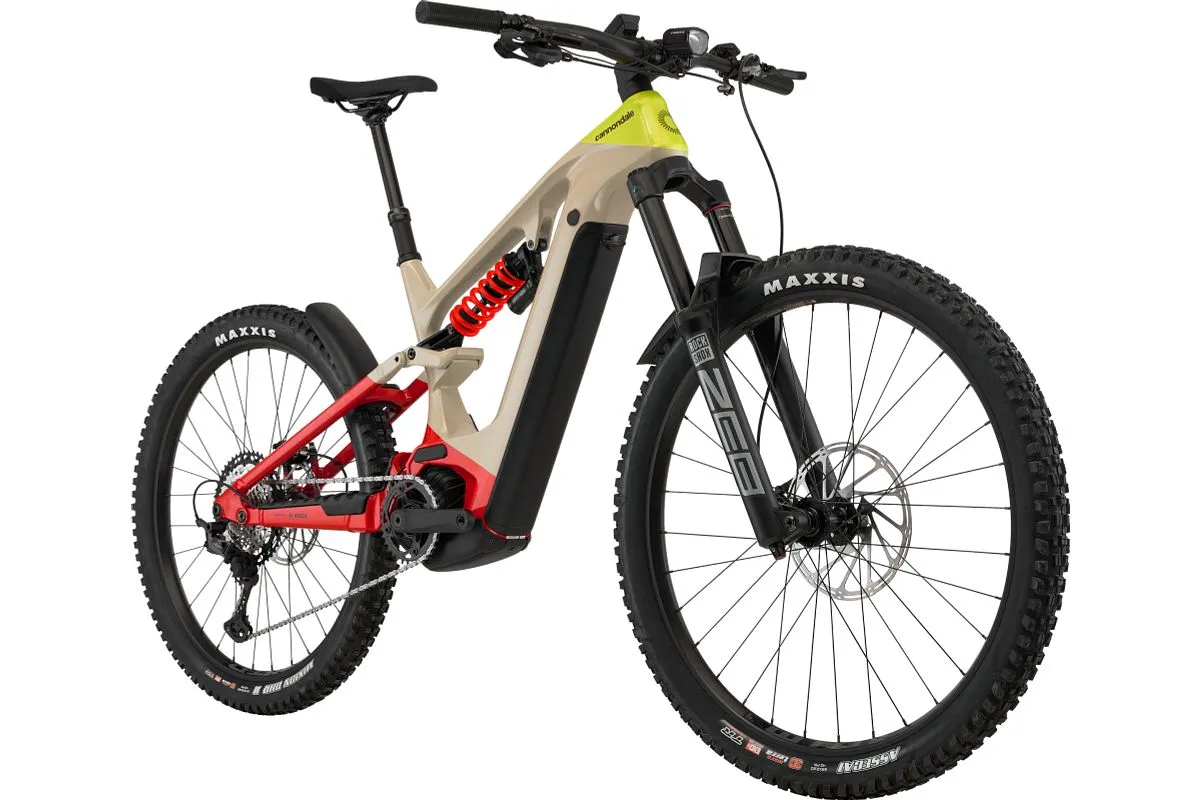

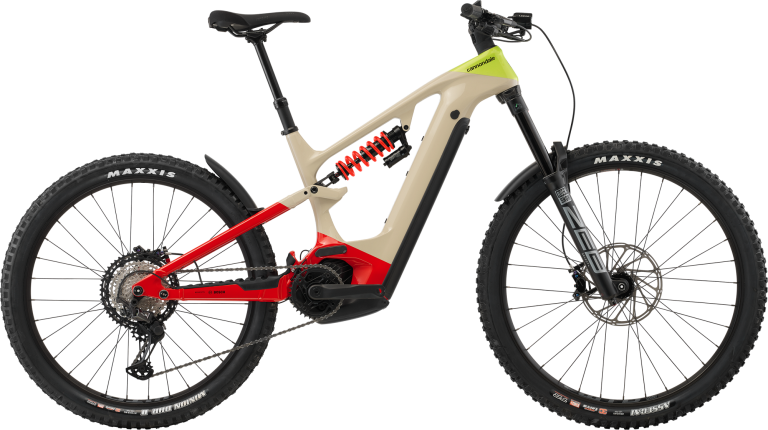

Breaking Boundaries of how an E-MTN bike handles Moterra Neo LT is in a league of It’s own. It’s a big, long travel e-mountain bike that rides like a snappy trail bike – agile and quick on the climbs, stable and composed on even the nastiest descents. It’s the kind of machine that makes you a better rider, wherever you ride.
Where it thrives: Whatever and wherever you didn’t think possible
What it’s built for: Handling, Traction, Efficiency, Durability
FEATURES:
- Proportional Response Tuned carbon frame, 160mm travel / RockShox Zeb Select+ fork, 170mm travel
- Bosch SmartSystem – 750Wh battery & Performance CX motor
- Shimano XT 12-speed drivetrain / SRAM Code RSC 4-piston brakes / Lezyne Super HB E1000 headlight
SPECS:

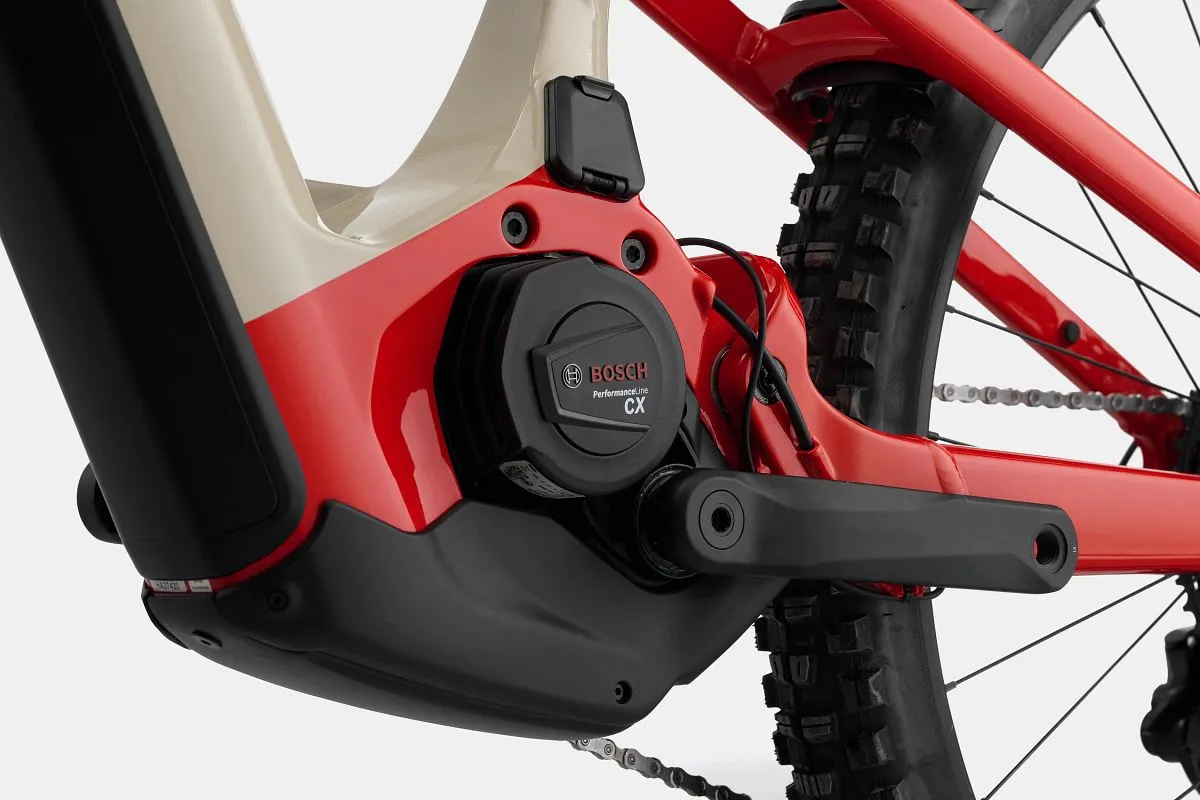

| Motor | Bosch Performance Line CX 250W |
| Battery | Bosch PowerTube 750Wh |

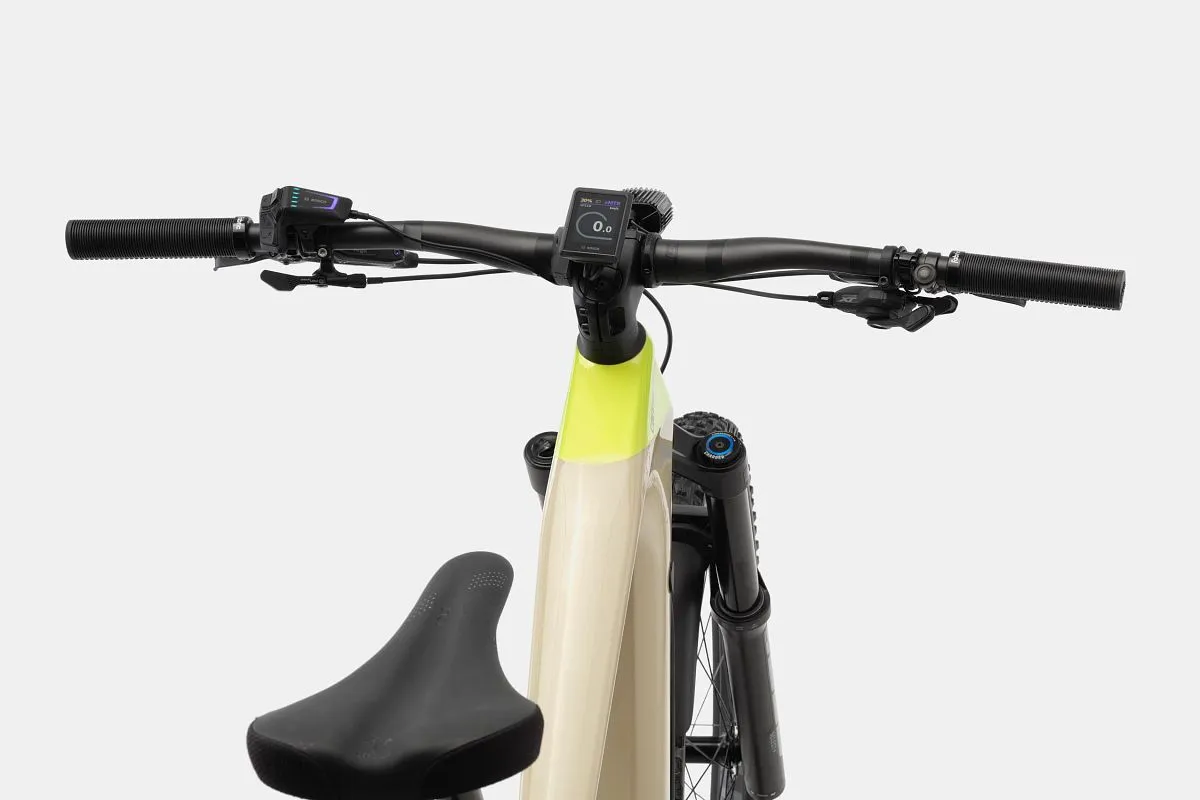

| Display | Bosch Kiox 300 w/ LED remote |
| Controller | N/A |
|
Max Assisted Speed |
20 MPH |
| Charger | Bosch 4A |

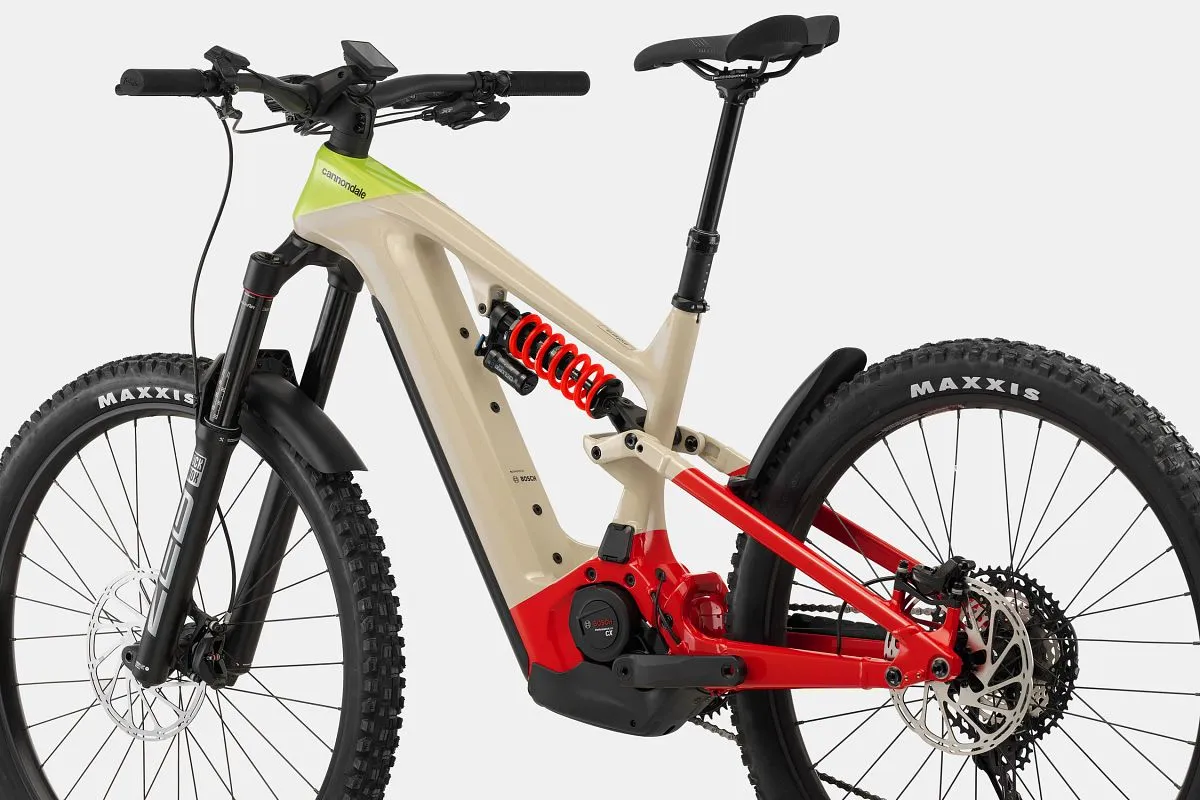

| Frame | Moterra Neo Carbon Front Triangle, SmartForm C1 Alloy Swingarm, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH hanger, post mount brake, 1.5” – 1.8” tapered headtube, 18mm two-bolt kickstand mount |
| Fork | RockShox Zeb Select +, Charger RC, 170mm, DebonAir, 15x110mm, 44mm offset |

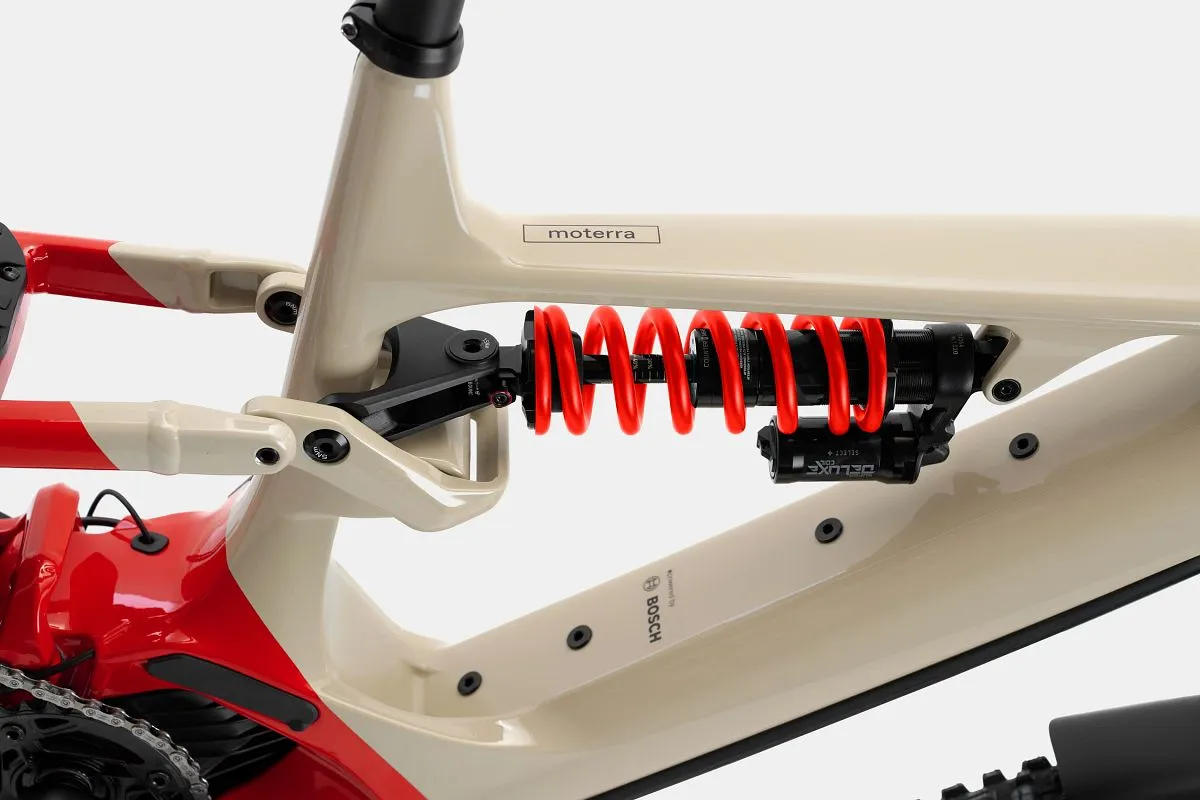

| Rear Shock | RockShox Deluxe Select+, Coil, 2-Pos mode adjust, adjustable rebound |
| Rims/Wheels | WTB KOM Trail i30 TCS, 32h, tubeless ready |
| Hubs | (F) Formula 15x110mm thru-axle / (R) DT Swiss, 12x148mm thru-axle |
| Spokes | DT Swiss Champion |
| Tires | (F) Maxxis Assegai, 29 x 2.6″, 3C, EXO+, tubeless ready, (R) Maxxis DHR II, 27.5 x 2.6″, 3C, EXO+, tubeless ready |
| Crankset | FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T |
| Chain | Shimano XT, 12-speed |
| Front Derailleur | N/A |

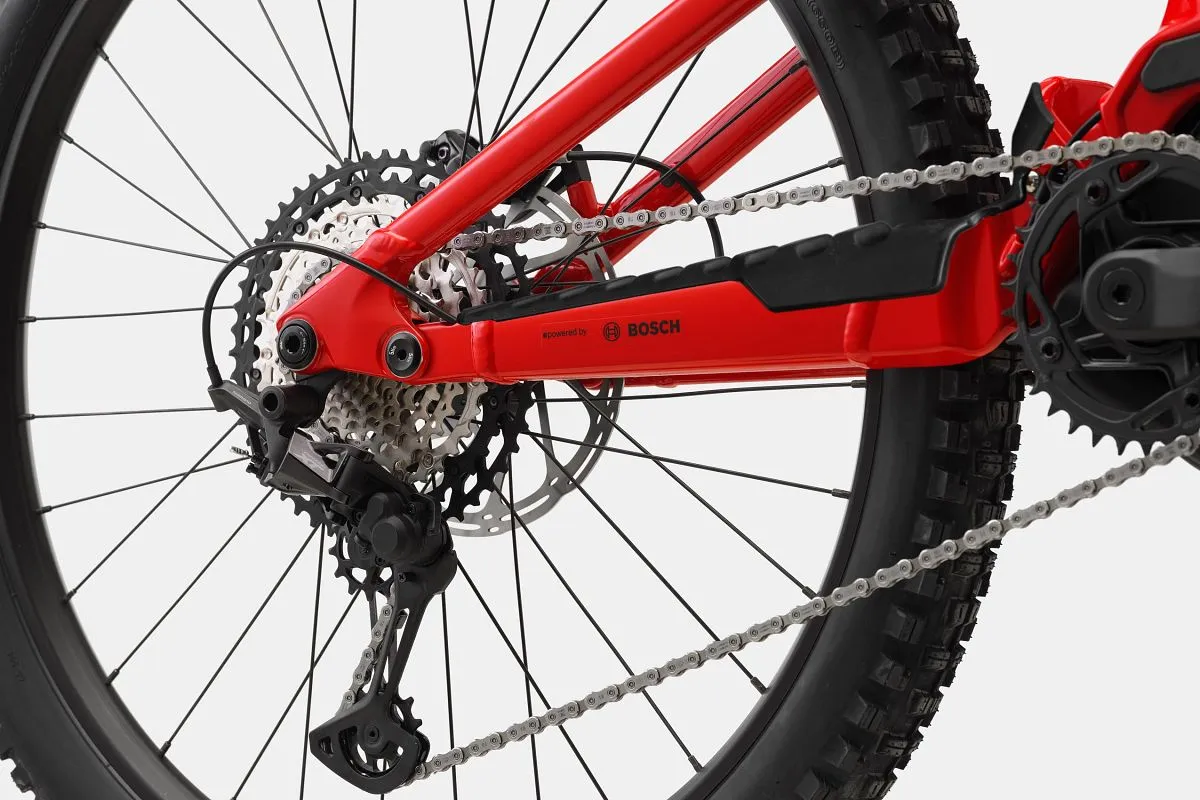

| Rear Derailleur | Shimano XT |
|
Cassette/Rear Cogs |
Shimano XT, 10-51, 12-speed |
| Shifters | Shimano XT, 12-speed |
| Handlebars | HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm |
| Stem | Cannondale 2, 6061 Alloy, 35mm, 0° |
| Brake Levers | SRAM Code RSC hydraulic disc |
| Brakes | SRAM Code RSC hydraulic disc, 4-piston, CenterLine 220/200mm rotors |
| Pedals | N/A |
| Saddle | Fabric Magic Elite Saddle, cro-mo rails |
| Seat Post | Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M), 170mm (L-XL) |
|
Accessories & Extras |

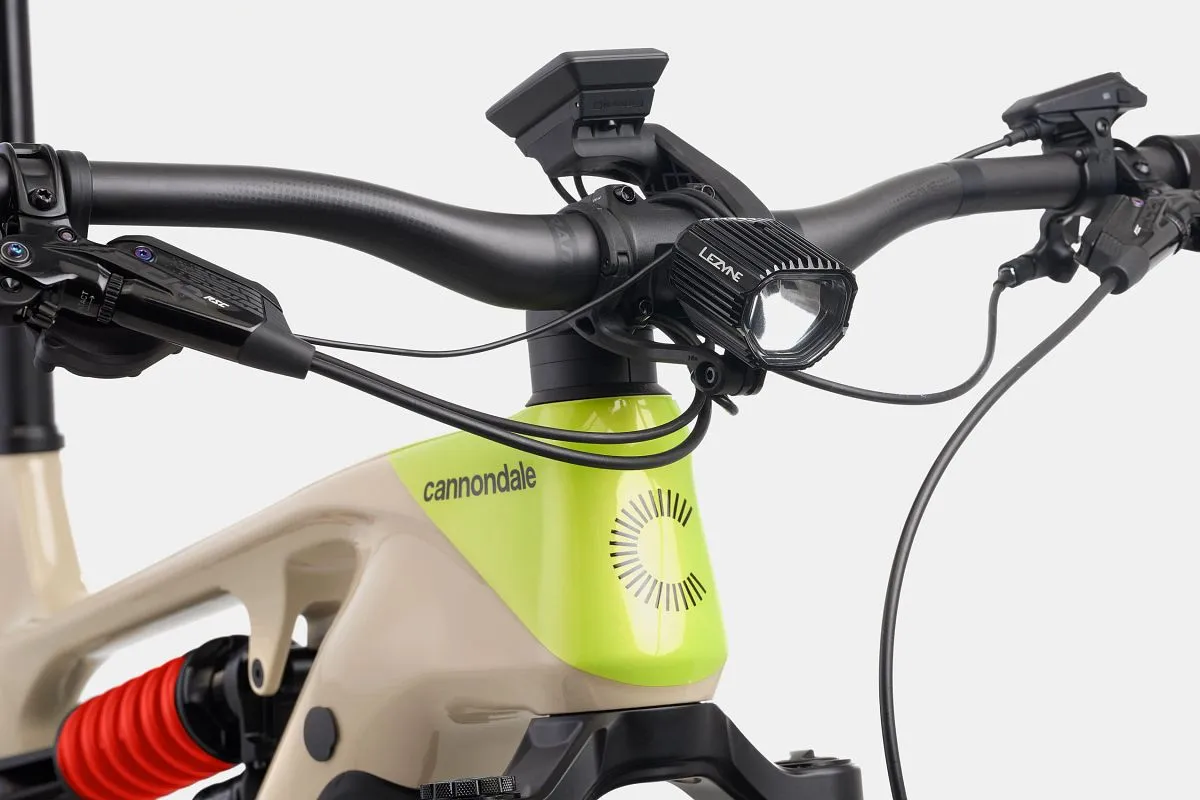

Lezyne Super HB E1000 w/ remote high beam switch |
