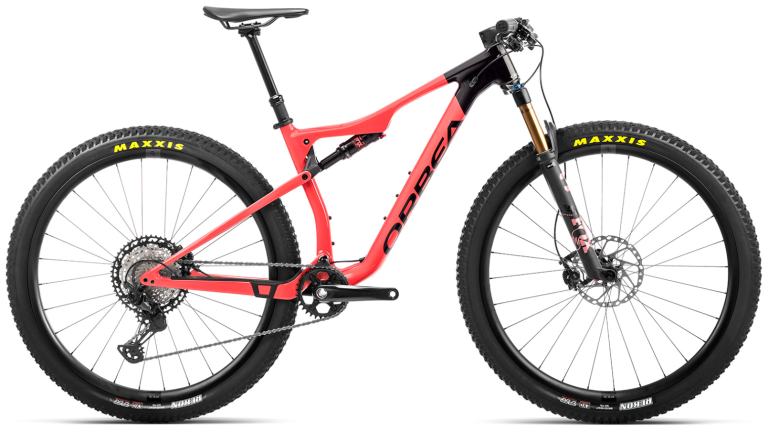

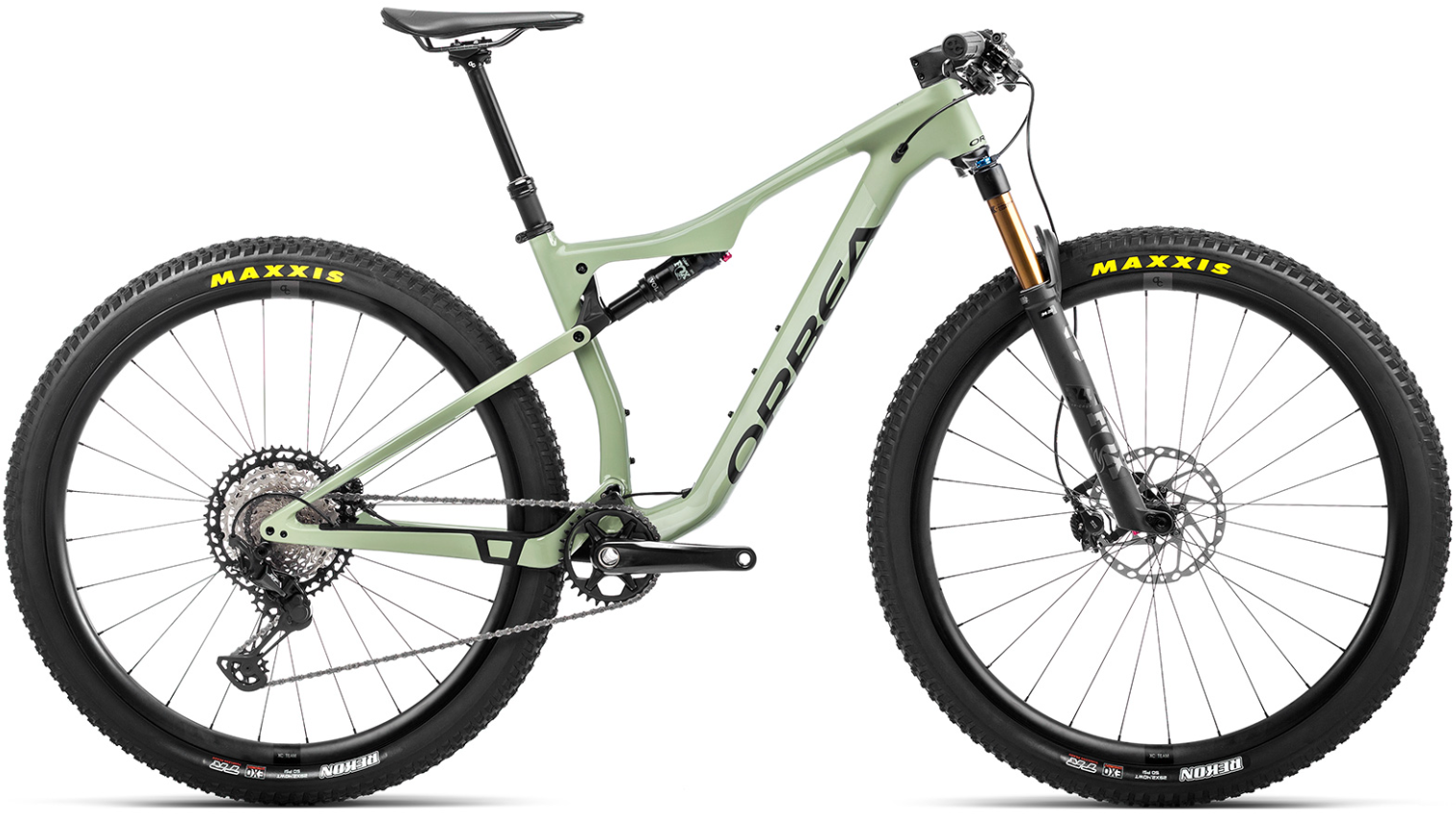

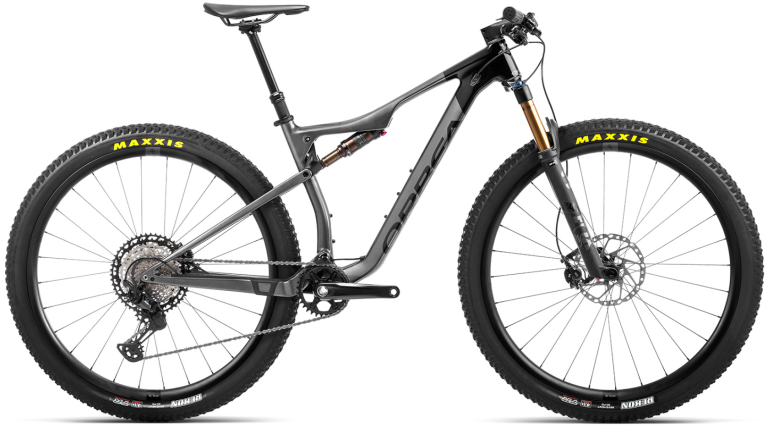

Orbea OIZ M10 TR

Oiz is familiar with the hard work it takes to reach summits, leaderboards and podium steps. Orbea doesn’t need to fabricate a pedigree for this phenomenon – two world championships prove Oiz is a thoroughbred. Oiz and serious cross-country are synonymous, its presence on the World Cup is undeniable. Is the lightest, stiffest and most efficient machine available whether you pin on a number or take it up to the highest peak on your afternoon ride. Oiz has what you need to get there – there is no better weapon to aim for the top. What could possibly be as cool as the world’s most efficient, sleek and sophisticated 100mm XC bike? The same bike in 120mm.

FEATURES:

• Twostroke: Because there are two stroke lengths offered in the same overall shock length, Oiz is available in two configurations – a 100mm travel World Cup ruler, and a 120mm TR trail slayer.
• 120mm of Travel: The TR version uses a 120mm fork and makes a few changes to
  bigger tires and a slightly tougher spec.
• Geometry Changes: The 120mm fork slackens Oiz TR’s headube angle by 1 degree and shortens the reach by 10mm.
• I-LINE: Our patented I-line is simply the sleekest, most integrated shock lock-out on the market. The shock is recessed into the top-tube, staying protected and freeing up space to grab your water bottle but leaving the controls easily accessible.

SPECS:

Frame	Orbea Oiz Carbon OMR AlloyLink Boost PF Taper UFO2 I-Line
Fork	Orbea Oiz Carbon OMR AlloyLink Boost PF Taper UFO2 I-Line
Rear Shock	Fox i-line DPS Factory 120mm Remote Push-Unlock Evol Kashima custom tune 190x45mm
Rims/Wheels	OC XC TEAM, 30 mm internal width, Tubeless ready, 28H
Hubs	N/A
Spokes	N/A
Tires	Maxxis Rekon Race 2.35″ 120 TPI Exo TLR
Crankset	Shimano XT M8100 32t
Chainrings	N/A
Bottom Bracket	N/A
Chain	Shimano M7100
Front Derailleur	Orbea OC chainguide
Rear Derailleur	Shimano XT M8100 SGS Shadow Plus
Cassette/Rear Cogs	Shimano CS-M8100 10-51t 12-Speed
Shifters	Shimano XT M8100 I-Spec EV
Handlebars	OC MP10 Mountain Performance Carbon, Width 760, Sweep 9
Grips	N/A
Stem	Acros Alloy 1-1/8 – 1-1/2″ Integrated
Brakes	Shimano XT M8100 Hydraulic Disc
Pedals	N/A
Saddle	Fizik Taiga S-alloy rail
Seat Post	OC MC20 Mountain Control Dropper, 31,6mm, 125mm travel
