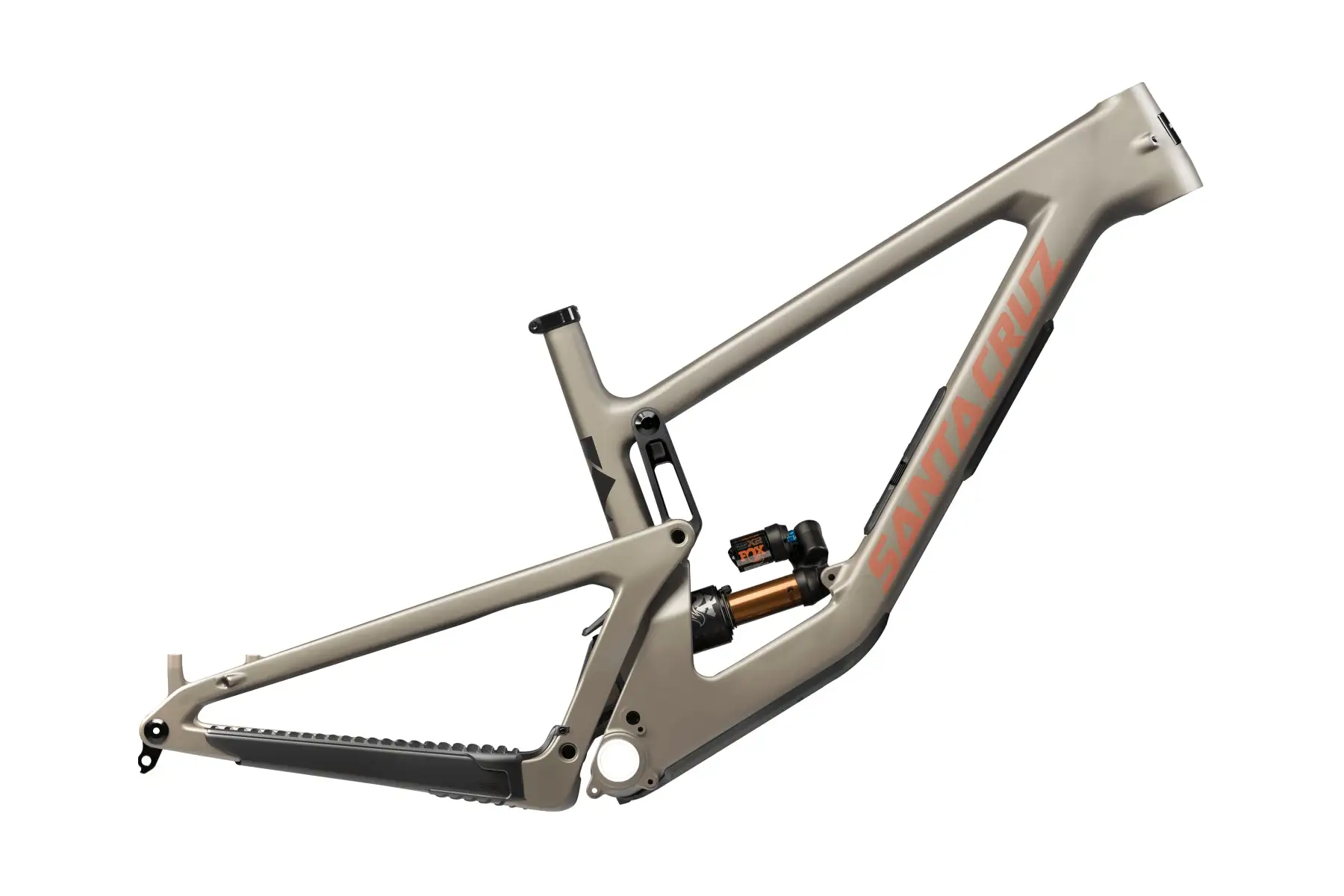

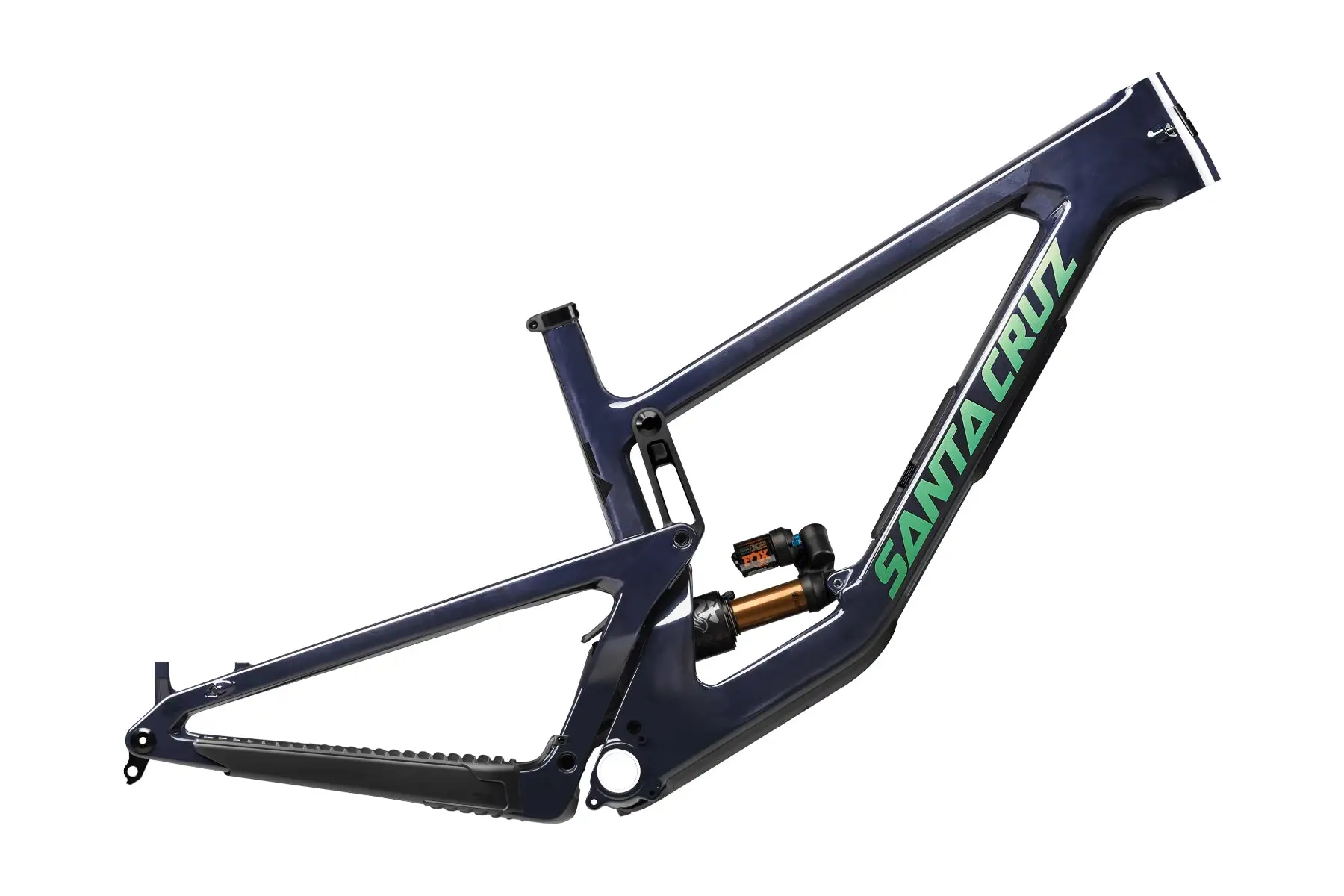

Santa Cruz Megatower CC Frame

Megatower is the ultimate privateer race bike. Backed with lifetime bearing replacement, its durable pivots are completely serviceable with a multitool in the back of a van or on the side of the trail. Megatower is a tool built for severe duty, and it’s supported by the Santa Cruz Lifetime Warranty.

The Megatower geometry and kinematics are meant for providing comfort at speed and a margin for error when taking blind risks.

FEATURES:

• The Glovebox™ means never starting a ride without all the tools you need and not having to strap it to the outside of your gorgeous machine. Includes a Tool Wallet and Tube Purse.
• Lower leverage ratio for more damped, controlled feel. Straight leverage curve provides consistent progression and no surprises.
• Lower Link Flip Chip & sealed bearing shock eyelet
• Chainstay length is matched to the frame size. Every rider gets the same balanced geometry.
• Lower overall leverage (thanks to a longer 62.5 stroke shock) provides more damping support for aggressive riding. Straighter end-stroke improves bottom-out resistance.

SPECS:

Suspension System	VPP
Rear Shock	Fox X2
Front Derailleur	No compatibility
Headset/Headtube	Integrated (IS41/52)
Seat Post	31.6mm
Seat Clamp	36.4mm
Eye to Eye length	230mm
Stroke	62.5mm
BB Shell	73mm Threaded
Max Tire Size	2.5″
Max Chainring Size	36t
Water Bottle Mounts	1
Shock Mounting Bushing Front	30×8
Shock Mounting Bushing Rear	30×8
Fork Offset	44mm
Brake Mount	200mm PM
