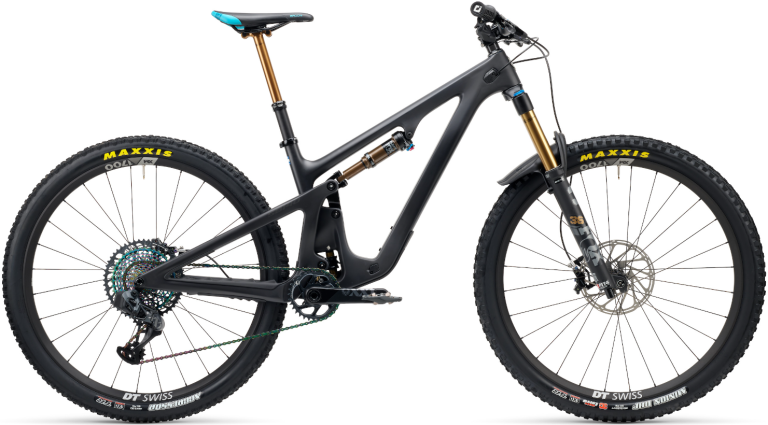

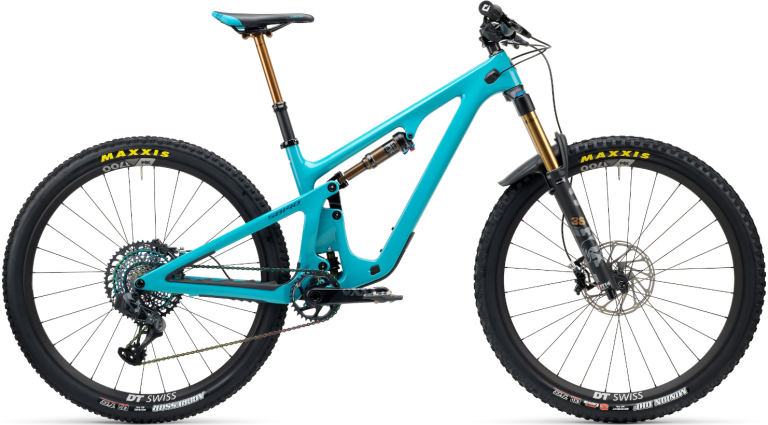

Yeti SB140 LR T1 GX/X01

Meet the bike in between nothing. Leaving no rider wanting. Master of the climb, the bomb, the rail, and the air. The utterly unequivocal. The rule crusher. The trend buster. No rig can rule all, but this one can absolutely rule. This is the mountain bike you reach for when the trail is untamed and unrelenting, in both directions. “Trail bike” is a term that gets used pretty liberally in the industry, so we designed the SB140 to be even better suited to go deep and find out what’s on the other side.

FEATURES:

• Switch Infinity: Switch Infinity utilizes a patented translating pivot that switches direction as the bike moves through its travel. This provides a tailored anti-squat curve while delivering a fine-tuned leverage ratio. Switch Infinity Absorbs bumps effectively and has a bottomless feel.
• Cable Management: Internally routed cable tubes with secure closures at entry and exit points eliminate rattles and cable rub. Whether running a mechanical drivetrain and dropper or a wireless setup, cable management is intuitively easy and quiet.
• Threaded BB: Threaded aluminum bottom bracket shell with integrated ISCG-05 tabs. This critical drivetrain interface is now more durable, cleaner, and easier to service.
• Universally Ready: If a hanger bending crash occurs, the new Yeti models use the Universal Derailleur Hanger (UDH) interface — the industry standard mount for a rear derailleur. The UDH is available in nearly any bike shop, Yeti dealer or not.
• Full Drop: As the capability of our bikes continues to increase, so does their ability to run modern day, full-stroke dropper posts. Our seat tube is shorter to allow for a longer dropper posts. Most riders will be able to use a 150mm dropper posts on Small frames*, 175mm on Medium frames*and 200mm+ dropper posts on L-XXL frames* respectively.
• Refined New Look: The refined main frame and swingarm silhouette is more than just striking good looks – it’s an engineering approach that packages Switch Infinity and shock linkage in a tighter, more efficient frame with added impact clearance. Holistic frame chassis stiffness has increased, along with frame ground clearance.

SPECS:

Frame	TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Fork	Fox Factory 36 GRIP 2 / 160mm
Rear Shock	Fox Factory Float X
Rims/Wheels	DT SWISS XM1700 30mm
Hubs	N/A
Spokes	N/A
Tires	(F) Maxxis Minion DHF 2.5 EXO (R) Maxxis Minion DHR 2.4 EXO
Crankset	Sram X1 Eagle 170mm
Chainrings	30t
Bottom Bracket	Sram DUB BSA 73
Chain	Sram GX Eagle
Front Derailleur	N/A
Rear Derailleur	Sram X01 Eagle
Cassette/Rear Cogs	Sram GX Eagle 1275 10-52
Shifters	Sram GX Eagle
Handlebars	Yeti Carbon 35x780mm
Grips	ODI Elite Pro
Stem	Burgtec Enduro MK3 35x50mm
Brakes	Sram Code RSC w/ Sram Centerline 200/180mm Rotors
Pedals	Not Included
Saddle	WTB Silverado Custom
Seat Post	Fox Transfer 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM
